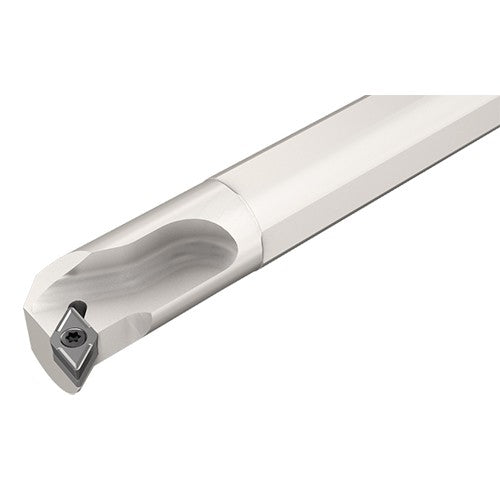

S-SDUCR 6-2
Item #: EH3601972
Brand: Iscar
Model #: 3601972
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Application | | Int 55° Diamond 93 5° Approach | |
| Overall Length (OAL) | 6″ |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Reduced Body Diameter Length (LDRED) | 0.882″ |
| Rake Angle Radial (GAMF) | -9 Degrees |
| Shank Height (H) | 0.33″ |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.35″ |
| Body Material | Steel |
| Master Insert Identification (MIID) | DCMT 2-0-PF |
| Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 0.562″ |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
