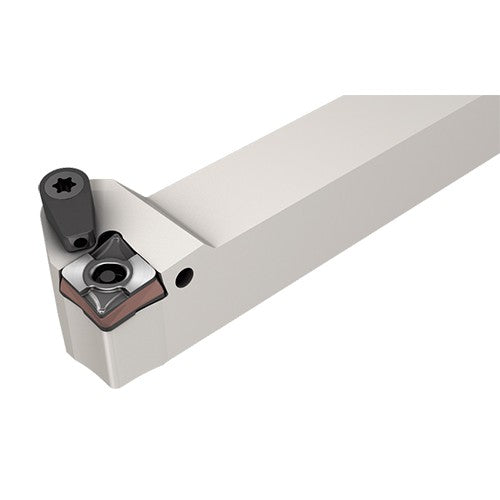

PCLXL 10-3XS-JHP
Item #: EH363352101
Brand: Iscar
Model #: 3352101
| Product Specifications | |
|---|---|
| Shank Height (H) | 5/8″ |
| Master Insert Identification (MIID) | CXMG 09.. |
| Shank Width (B) | 5/8″ |
| Application | | Ext. 80° Diamond 95° Approach | |
| Functional Length (LF) | 5″ |
| Rake Angle Axial (GAMP) | 6 Degrees |
| Head Length (LH) | 0.787″ |
| Rake Angle Radial (GAMF) | 6 Degrees |
| Functional Width (WF) | 0.63″ |
| Body Material | Steel |
| Inscribed Circle Diameter (IC) | 0.368″ |
| Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand |
| Measurement Type | Inch |
