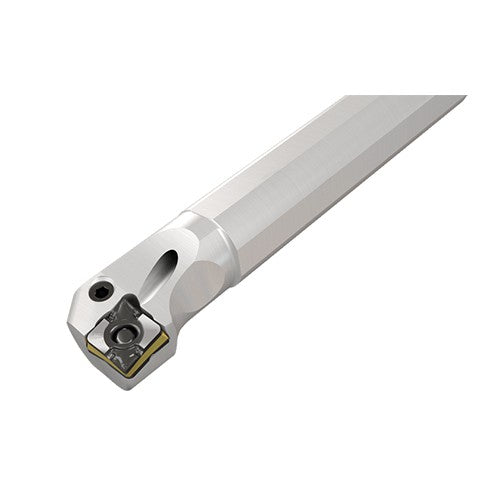

A25R PCLXR-12X
Item #: EH363360210
Brand: Iscar
Model #: 3360210
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 200 mm |
| Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 40 mm |
| Rake Angle Axial (GAMP) | 6 Degrees |
| Shank Height (H) | 23 mm |
| Rake Angle Radial (GAMF) | 9 Degrees |
| Functional Width (WF) | 17 mm |
| Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CXMG 12.. |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 32 mm |
| Measurement Type | Metric |
