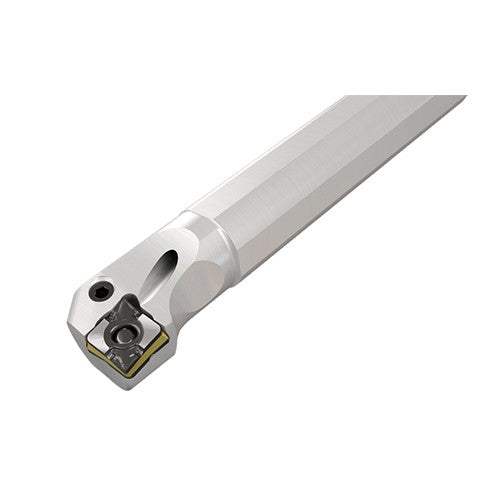

A-PCLXL 20-4X
Item #: EH363360444
Brand: Iscar
Model #: 3360444
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.49″ |
| Application | | Int. 80° Diamond 95° Approach | |
| Functional Length (LF) | 12″ |
| Rake Angle Axial (GAMP) | 6 Degrees |
| Head Length (LH) | 1.9″ |
| Rake Angle Radial (GAMF) | 9 Degrees |
| Functional Width (WF) | 0.765″ |
| Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CXMG 12.. |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.55″ |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
