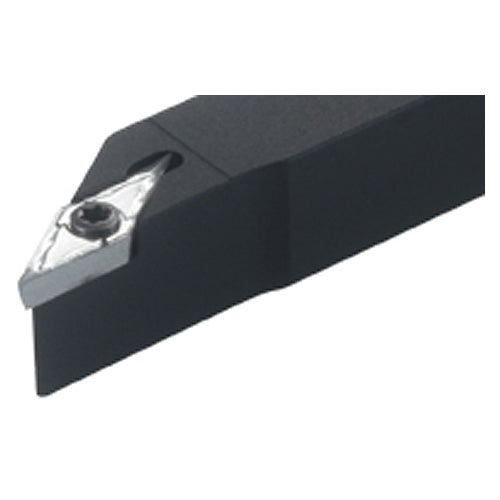

SVACL 1616K-13S
Item #: EH3699040
Brand: Iscar
Model #: 3699040
| Product Specifications | |
|---|---|
| Shank Height (H) | 0.63″ |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 0.63″ |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 4.921″ |
| Body Material | Steel |
| Functional Width (WF) | 0.63″ |
| Cutting Position | External |
| Inscribed Circle Diameter (IC) | 0.313″ |
| Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand |
| Measurement Type | Inch |
| Master Insert Identification (MIID) | VC..13.. |
| Insert Style | 4.921″ |
| Application | | Ext. 35° Diamond 91° Approach | |
