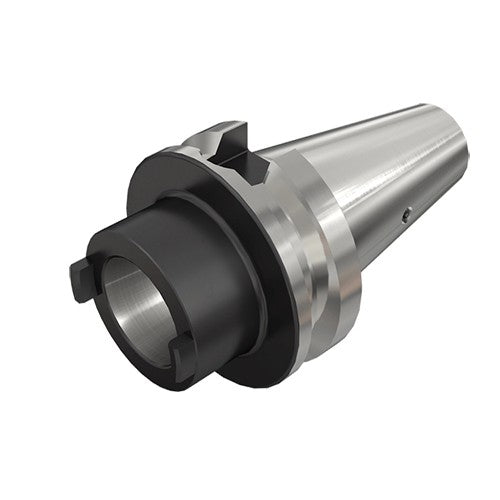

BT50 AD BT/SK40
Item #: EH4511554
Brand: Iscar
Model #: 4511554
| Product Specifications | |
|---|---|
| Protruding Length (LPR) | 75 mm |
| Body Material | Steel |
| Body Diameter (BD) | 66 mm |
| Connection Retention Knob Thread Size (CRKS) | M24 |
| Body Length (LB) | 37 mm |
| Shank Length (LS) | 101.8 mm |
| Shank Size (SS) | 50 |
| Flange Diameter (DF) | 100 mm |
| Tool Type | BT |
| Overall Length (OAL) | 179.8 mm |
| Measurement Type | Metric |
| Connection Code Machine Side (CCMS) | BT |
| Weight of Item (WT) | 4.05 Kg |
