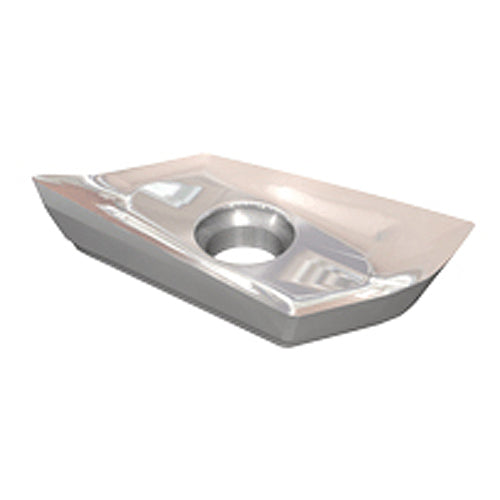

HM90 APCR 220664R-P IC08
Item #: EH453358137
Brand: Iscar
Model #: 3358137
| Product Specifications | |
|---|---|
| Applicable Material | | Non Ferrous Metals | |
| Grade | IC08 |
| Application | | Facing | Helical Interpolation | Milling Inserts | Profiling | Rampdown | Shouldering | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Cutting Edge Length (L) | 1.055″ |
| Cutting Edge Material | Carbide |
| Insert Length (INSL) | 1.055″ |
| Tool Type | Mill AL, HTA Geometric Inserts |
| Corner Radius (RE) | 0.252″ |
| Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.866″ |
| Cutting Edge Effective Length (LE) | 0.799″ |
| Insert Width (W1) | 0.54″ |
| Measurement Type | Inch |
| Insert Thickness (S) | 0.236″ |
| Body Material | Carbide |
| Coating | Uncoated |
