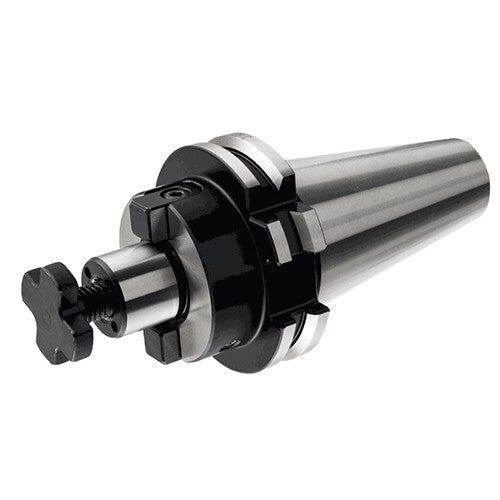

DIN69871 40 SEM22X100 C
Item #: EH4539080
Brand: Iscar
Model #: 4539080
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Workpiece Side (DCONWS) | 22 mm |
| Clamping Length Workpiece Side (LSCWS) | 19 mm |
| Shank Size (SS) | 40 |
| Tool Type | DIN 69871 |
| Body Length (LB) | 100 mm |
| Measurement Type | Metric |
| Body Diameter (BD) | 47 mm |
| Body Material | Steel |
| Shank Standard | DIN69871 |
| Connection Code Machine Side (CCMS) | DIN69871 |
