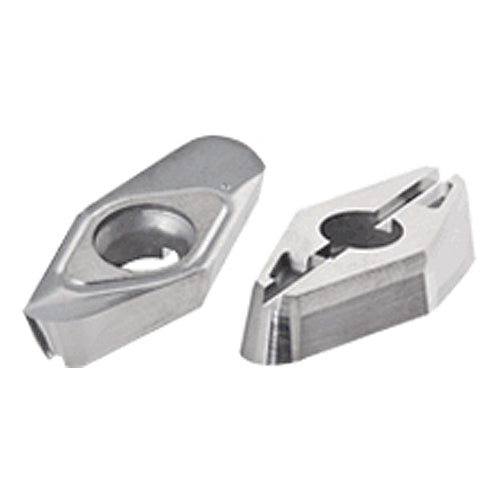

HSM90S APCR 140564R-P IC28
Item #: EH455607520
Brand: Iscar
Model #: 5607520
| Product Specifications | |
|---|---|
| Applicable Material | | Non Ferrous Metals | |
| Grade | IC28 |
| Application | | Facing | Helical Interpolation | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Cutting Edge Length (L) | 0.984″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.984″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.252″ |
| Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.433″ |
| Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Width (W1) | 0.492″ |
| Measurement Type | Inch |
| Insert Thickness (S) | 0.217″ |
| Body Material | Carbide |
| Coating | Uncoated |
