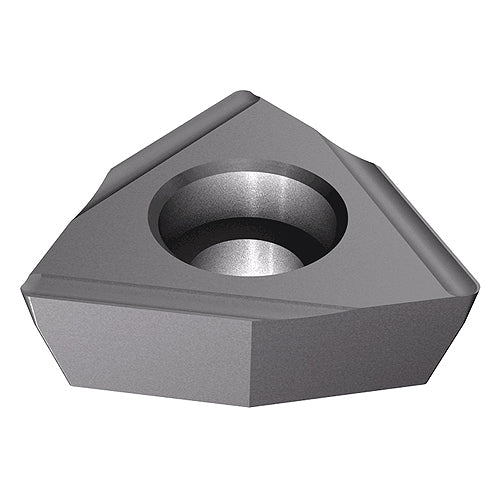

WPEX 060402R12 IC08
Item #: EH5505949
Brand: Iscar
Model #: 5505949
| Product Specifications | |
|---|---|
| Applicable Material | | Non Ferrous Metals | |
| Fixing Hole Diameter (D1) | 0.146″ |
| Application | | Ext. Positive Trigon 45°Approa | Ext. Positive Trigon 60°Approa | Ext. Positive Trigon 75°Approa | Ext. Positive Trigon 90°Approa | Insert | |
| Min D.O.C. | 0.008″ |
| Insert Style | WPEX |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Corner Radius (RE) | 0.0079″ |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Size | 060402 |
| Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Cutting Edge Length (L) | 0.236″ |
| Clearance Angle Major (AN) | 12 Degrees |
| Insert Thickness (S) | 0.157″ |
| Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | X |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | Uncoated |
| Shape | 80° Trigon |
| Grade | IC08 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
