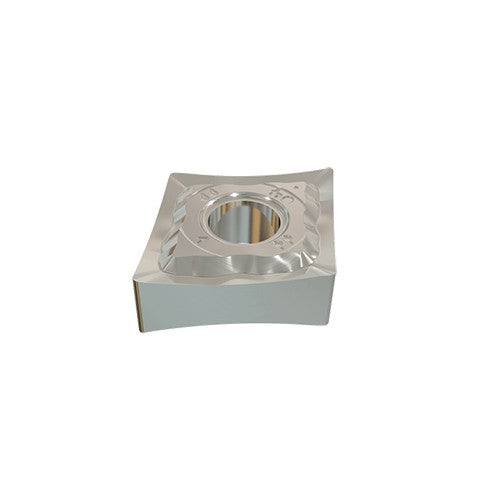

CNMG 431-PP IC8350
Item #: EH5507861
Brand: Iscar
Model #: 5507861
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Negative Inserts |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Insert | Int. 80° Diamond 95° Approach | |
| Fixing Hole Diameter (D1) | 0.203″ |
| Insert Style | CNMG |
| Min D.O.C. | 0.039″ |
| Corner Radius (RE) | 0.0157″ |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Size | 431 |
| Min. Turning Feed (ft(min)) | 0.0055 ″/rev |
| Cutting Edge Length (L) | 0.508″ |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Chip Breaker Type | PP |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 80° Rhombic |
| Coating | TiCN+Al2O3+TiN |
| Series/List # | CNMG 431-PP |
| Grade | IC8350 |
| Body Material | Carbide |
