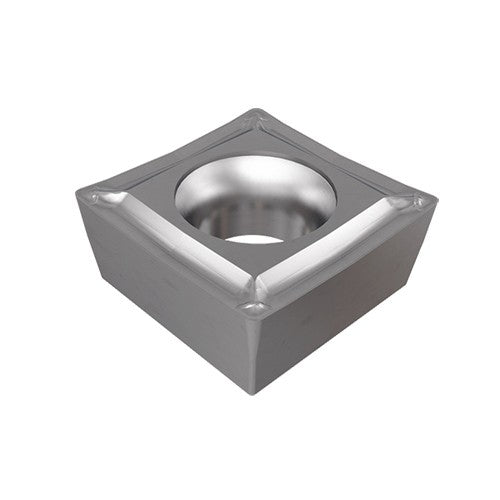

SCMT 3-2-SM IC8150
Item #: EH5508156
Brand: Iscar
Model #: 5508156
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Fixing Hole Diameter (D1) | 0.173″ |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Insert | Int. 90° Square 75° Approach | |
| Min D.O.C. | 0.02″ |
| Insert Style | SCMT |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Corner Radius (RE) | 0.0315″ |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Size | 3-2 |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Cutting Edge Length (L) | 3/8″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.156″ |
| Chip Breaker Type | SM |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 90° Square |
| Coating | TiCN+Al2O3+TiCN+TiN |
| Series/List # | SCMT 3-2-SM |
| Grade | IC8150 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
