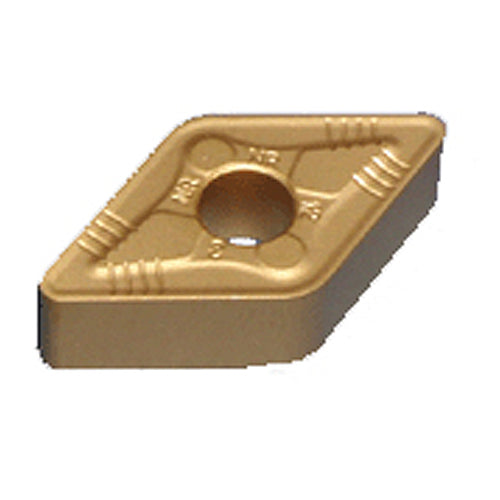

DNMG 444-NR IC8150
Item #: EH5508274
Brand: Iscar
Model #: 5508274
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Grade | IC8150 |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Insert | Int 55° Diamond 93 5° Approach | |
| Tool Type | Turn Negative Inserts |
| Insert Style | DNMG |
| Min D.O.C. | 0.079″ |
| Corner Radius (RE) | 0.063″ |
| Depth of Cut Maximum (APMX) | 0.236″ |
| Insert Size | 444 |
| Min. Turning Feed (ft(min)) | 0.0098 ″/rev |
| Cutting Edge Length (L) | 0.61″ |
| Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Insert Thickness (S) | 1/4″ |
| Chip Breaker Type | NR |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 55° Rhombic |
| Coating | TiCN+Al2O3+TiCN+TiN |
| Body Material | Carbide |
