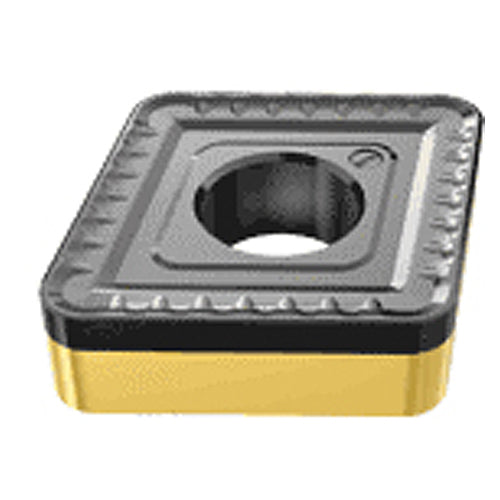

CNMM 866-H3P IC8250
Item #: EH5509536
Brand: Iscar
Model #: 5509536
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Negative Inserts |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | |
| Fixing Hole Diameter (D1) | 0.359″ |
| Insert Style | CNMM |
| Min D.O.C. | 0.197″ |
| Corner Radius (RE) | 0.0945″ |
| Depth of Cut Maximum (APMX) | 0.472″ |
| Insert Size | 866 |
| Min. Turning Feed (ft(min)) | 0.0217 ″/rev |
| Cutting Edge Length (L) | 1.015″ |
| Max. Turning Feed (ft(max)) | 0.0512 ″/rev |
| Insert Thickness (S) | 3/8″ |
| Chip Breaker Type | H3P |
| Inscribed Circle Diameter (IC) | 1″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 80° Rhombic |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
| Grade | IC8250 |
