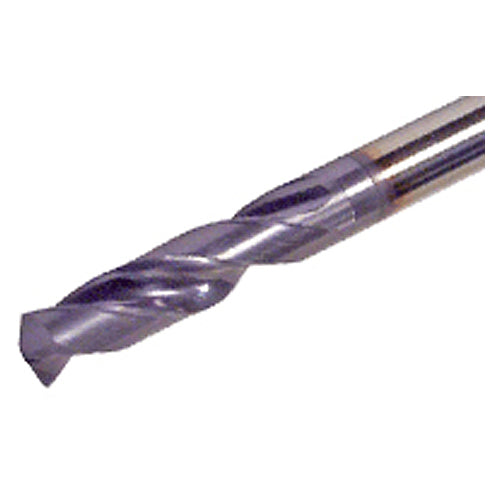

SCD 0468-185-0500ACP3 IC908
Item #: EH5530788
Brand: Iscar
Model #: 5530788
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.468″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.468″ |
| Tool Type | solid carbide Drills |
| Decimal Equivalent | 0.468″ |
| Grade | IC908 |
| Length Group | 3D |
| Measurement Type | Inch |
| Coating | TiAlN |
| Usable Length (LU) | 1.34″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Length Chip Flute (LCF) | 1.85″ |
| Application | | Drilling | |
| Overall Length (OAL) | 3.74″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 |
| Body Material | Carbide |
| Shank Length (LS) | 1.79″ |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round |
