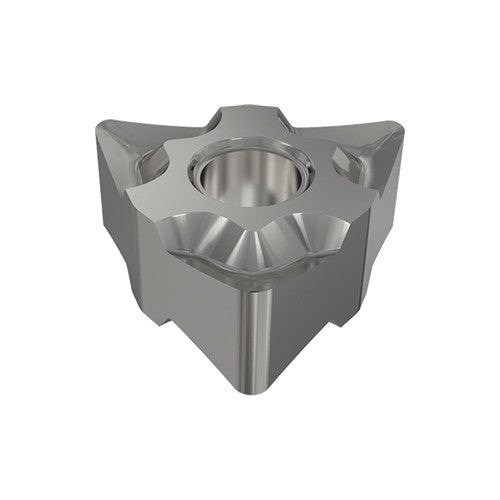

WNGG 332-F3N-P IC20
Item #: EH553320975
Brand: Iscar
Model #: 3320975
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Coating | Uncoated |
| Application | | Ext. 80° Trigon 95° Approach | Insert | Int. 80° Trigon 95° Approach | |
| Grade | IC20 |
| Insert Style | WNGG |
| Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.0315″ |
| Min D.O.C. | 0.031″ |
| Insert Size | 332 |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Cutting Edge Length (L) | 0.257″ |
| Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
