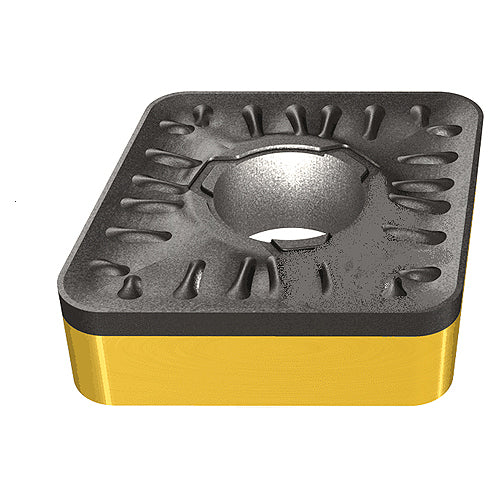

CNMM 434-R3P IC830
Item #: EH553328758
Brand: Iscar
Model #: 3328758
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | IC830 |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Insert | Int. 80° Diamond 95° Approach | |
| Tool Type | Turn Negative Inserts |
| Insert Style | CNMM |
| Fixing Hole Diameter (D1) | 0.203″ |
| Corner Radius (RE) | 0.063″ |
| Min D.O.C. | 0.059″ |
| Insert Size | 434 |
| Depth of Cut Maximum (APMX) | 0.295″ |
| Cutting Edge Length (L) | 0.508″ |
| Min. Turning Feed (ft(min)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.0354 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Chip Breaker Type | R3P |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | AlTiN+TiN |
| Body Material | Carbide |
