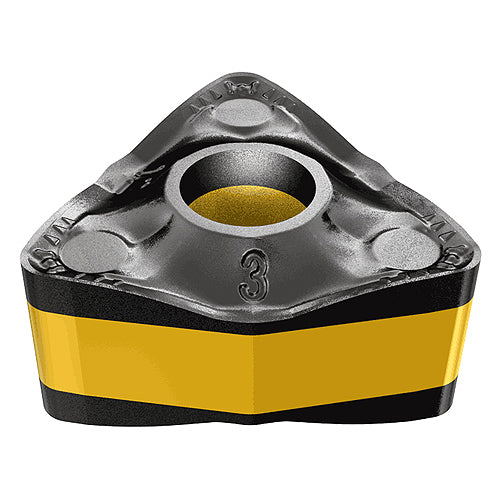

WNMX 342-M3MW IC830
Item #: EH553328825
Brand: Iscar
Model #: 3328825
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | IC830 |
| Application | | Ext. 80° Trigon 95° Approach | Insert | Int. 80° Trigon 95° Approach | |
| Tool Type | Turn Negative Inserts |
| Insert Style | WNMX |
| Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 0.0315″ |
| Min D.O.C. | 0.039″ |
| Insert Size | 342 |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Cutting Edge Length (L) | 0.256″ |
| Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.174″ |
| Max. Turning Feed (ft(max)) | 0.0236 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | HMW |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | AlTiN+TiN |
| Body Material | Carbide |
