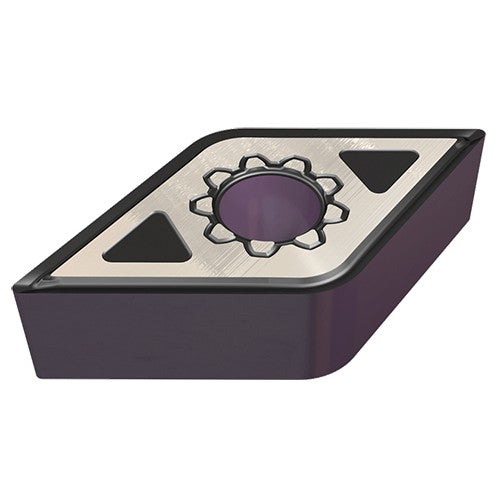

DNMG 441-F3S IC806
Item #: EH553340874
Brand: Iscar
Model #: 3340874
| Product Specifications | |
|---|---|
| Applicable Material | | Hi Temp Alloys | |
| Coating | AlTiN "SUMO TEC" |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Insert | Int 55° Diamond 93 5° Approach | |
| Grade | IC806 |
| Insert Style | DNMG |
| Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.0157″ |
| Min D.O.C. | 0.004″ |
| Insert Size | 441 |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Cutting Edge Length (L) | 0.61″ |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 1/4″ |
| Max. Turning Feed (ft(max)) | 0.0126 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
