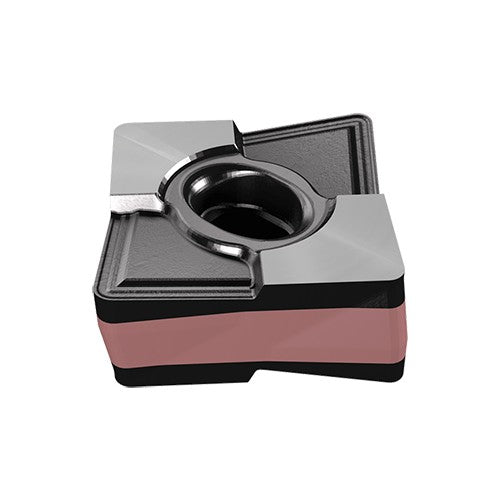

CXMG 12T512-M3M IC806
Item #: EH553355854
Brand: Iscar
Model #: 3355854
| Product Specifications | |
|---|---|
| Applicable Material | | Hi Temp Alloys | |
| Coating | AlTiN "SUMO TEC" |
| Application | | Ext. 80° Diamond 95° Approach | Insert | Int. 80° Diamond 95° Approach | |
| Grade | IC806 |
| Insert Style | CXMG |
| Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.0472″ |
| Min D.O.C. | 0.047″ |
| Insert Size | 12T512 |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Cutting Edge Length (L) | 0.539″ |
| Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.228″ |
| Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Inscribed Circle Diameter (IC) | 0.492″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
