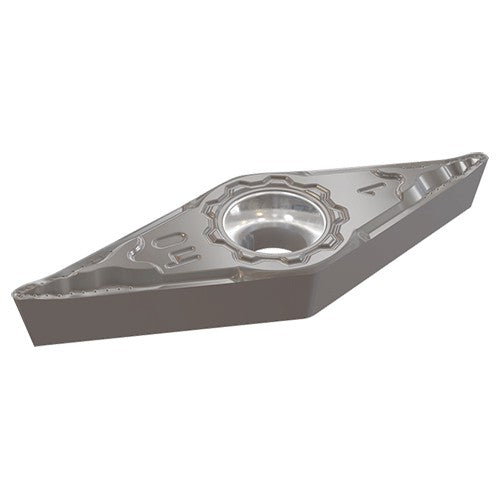

VCGT 221-F2M IC907
Item #: EH553356027
Brand: Iscar
Model #: 3356027
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Grade | IC907 |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 142° Approach | Int. 35° Diamond 93° Approach | Int. 35° Diamond 95° Approach | |
| Tool Type | Turn Positive Inserts |
| Insert Style | VCGT |
| Fixing Hole Diameter (D1) | 0.114″ |
| Corner Radius (RE) | 0.0157″ |
| Min D.O.C. | 0.02″ |
| Insert Size | 221 |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Cutting Edge Length (L) | 0.437″ |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 1/8″ |
| Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiAlN+TiN |
| Body Material | Carbide |
