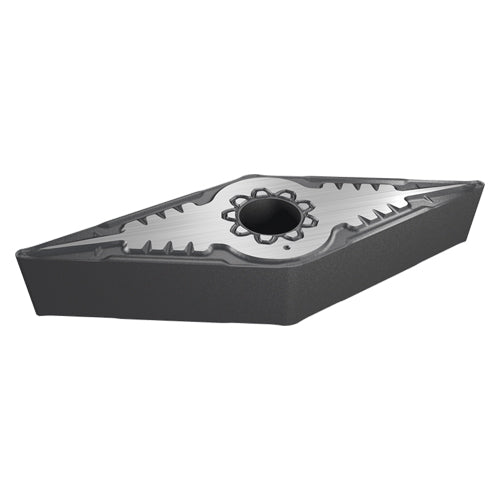

VNMG 2.5-0-F3M IC804
Item #: EH553356615
Brand: Iscar
Model #: 3356615
| Product Specifications | |
|---|---|
| Applicable Material | | Hi Temp Alloys | |
| Grade | IC804 |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Insert | Int. 35° Diamond 93° Approach | |
| Tool Type | Turn Negative Inserts |
| Insert Style | VNMG |
| Min D.O.C. | 0.004″ |
| Corner Radius (RE) | 0.008″ |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Insert Size | 2.5-0 |
| Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.488″ |
| Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.156″ |
| Chip Breaker Type | F3M |
| Inscribed Circle Diameter (IC) | 0.281″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN "SUMO TEC" |
