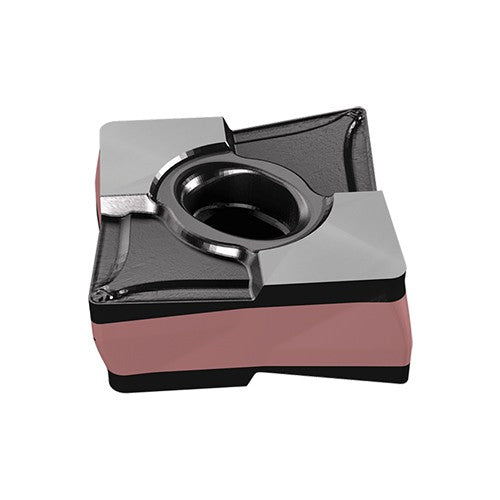

CXMG 090402-F3M IC6015
Item #: EH553366848
Brand: Iscar
Model #: 3366848
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | |
| Coating | TiCN+Al2O3+TiN |
| Application | | Ext. 80° Diamond 95° Approach | Insert | Int. 80° Diamond 95° Approach | |
| Grade | IC6015 |
| Insert Style | CXMG |
| Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.0079″ |
| Min D.O.C. | 0.012″ |
| Insert Size | 090402 |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Cutting Edge Length (L) | 0.409″ |
| Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 0.183″ |
| Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Inscribed Circle Diameter (IC) | 0.368″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
