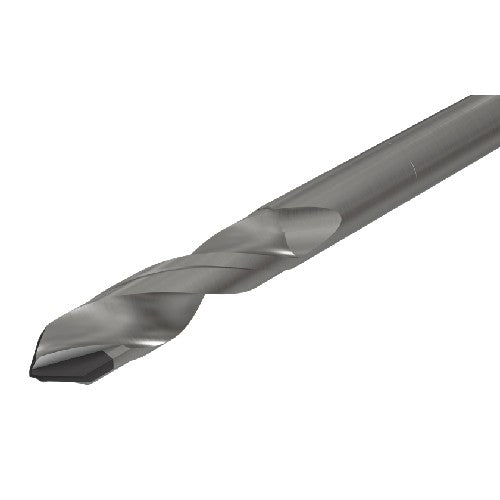

SCD 0438-175-500 WPCD
Item #: EH553384463
Brand: Iscar
Model #: 3384463
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.438″ |
| Measurement Type | Inch |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.438″ |
| Usable Length (LU) | 1-3/4″ |
| Decimal Equivalent | 0.438″ |
| Length Chip Flute (LCF) | 2.41″ |
| Application | | Drilling | |
| Overall Length (OAL) | 3-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Flute Count (NOF) | 2 |
| Number of Teeth | 2 |
| Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 1.57″ |
| Body Material | Carbide |
| Shank Type | Round |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | Solid Carbide Drill |
