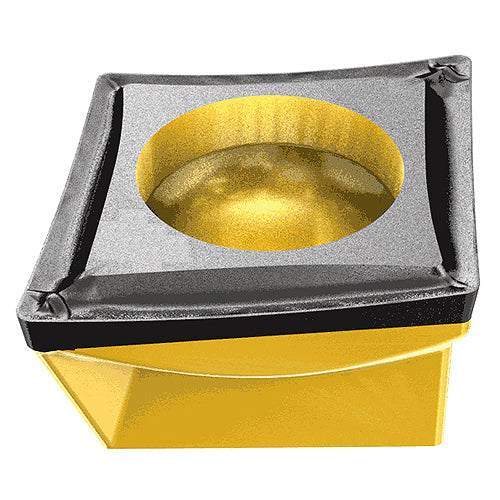

CC95MT 100504-SM IC8250
Item #: EH5550201
Brand: Iscar
Model #: 5550201
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Positive Inserts |
| Application | | Ext. 80° Diamond 95° Approach | Insert | Int. 80° Diamond 95° Approach | |
| Fixing Hole Diameter (D1) | 0.177″ |
| Insert Style | CC95MT |
| Min D.O.C. | 0.02″ |
| Corner Radius (RE) | 0.016″ |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 100504 |
| Min. Turning Feed (ft(min)) | 0.0028 ″/rev |
| Cutting Edge Length (L) | 0.374″ |
| Max. Turning Feed (ft(max)) | 0.0094 ″/rev |
| Insert Thickness (S) | 0.197″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | SM |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Shape | 80° Rhombic |
| Grade | IC8250 |
| Body Material | Carbide |
