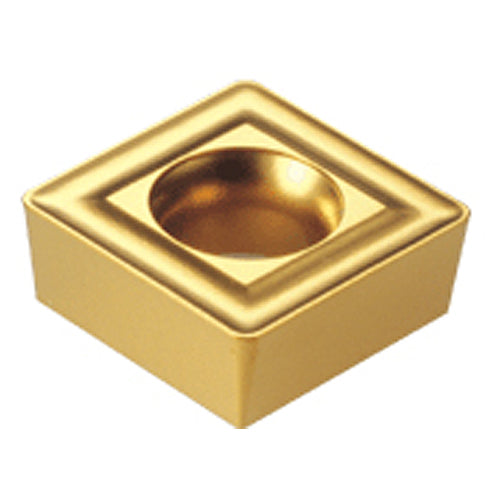

SCMT 433-19 IC50M
Item #: EH555667602
Brand: Iscar
Model #: 5667602
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Positive Inserts |
| Application | | Chamfering & Bottom Deburring | Countersinking | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Insert | Int. 90° Square 75° Approach | Slanted Shoulder & Chamfer | |
| Fixing Hole Diameter (D1) | 0.217″ |
| Insert Style | SCMT |
| Min D.O.C. | 0.118″ |
| Corner Radius (RE) | 0.0472″ |
| Depth of Cut Maximum (APMX) | 0.315″ |
| Insert Size | 433 |
| Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Cutting Edge Length (L) | 1/2″ |
| Max. Turning Feed (ft(max)) | 0.0138 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Chip Breaker Type | 19 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | Uncoated |
| Shape | 90° Square |
| Grade | IC50M |
| Body Material | Carbide |
