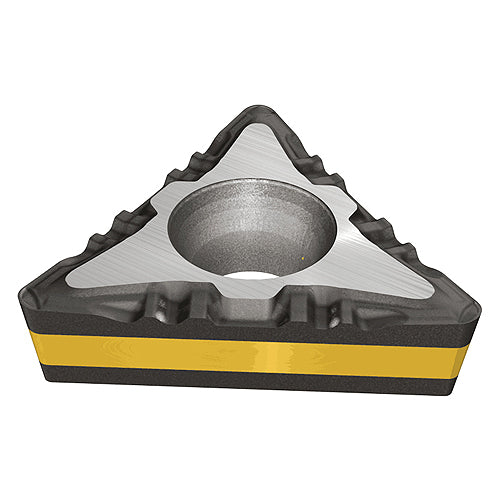

TCMT 730-F3P IC8250
Item #: EH5566880
Brand: Iscar
Model #: 5566880
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Positive Inserts |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Insert | Int. 60° Triangle 90° Approach | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | |
| Fixing Hole Diameter (D1) | 0.098″ |
| Insert Style | TCMT |
| Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.008″ |
| Depth of Cut Maximum (APMX) | 0.067″ |
| Insert Size | 730 |
| Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.378″ |
| Max. Turning Feed (ft(max)) | 0.0055 ″/rev |
| Insert Thickness (S) | 0.094″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 0.219″ |
| Chip Breaker Type | F3P |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Shape | 60° Triangle |
| Grade | IC8250 |
| Body Material | Carbide |
