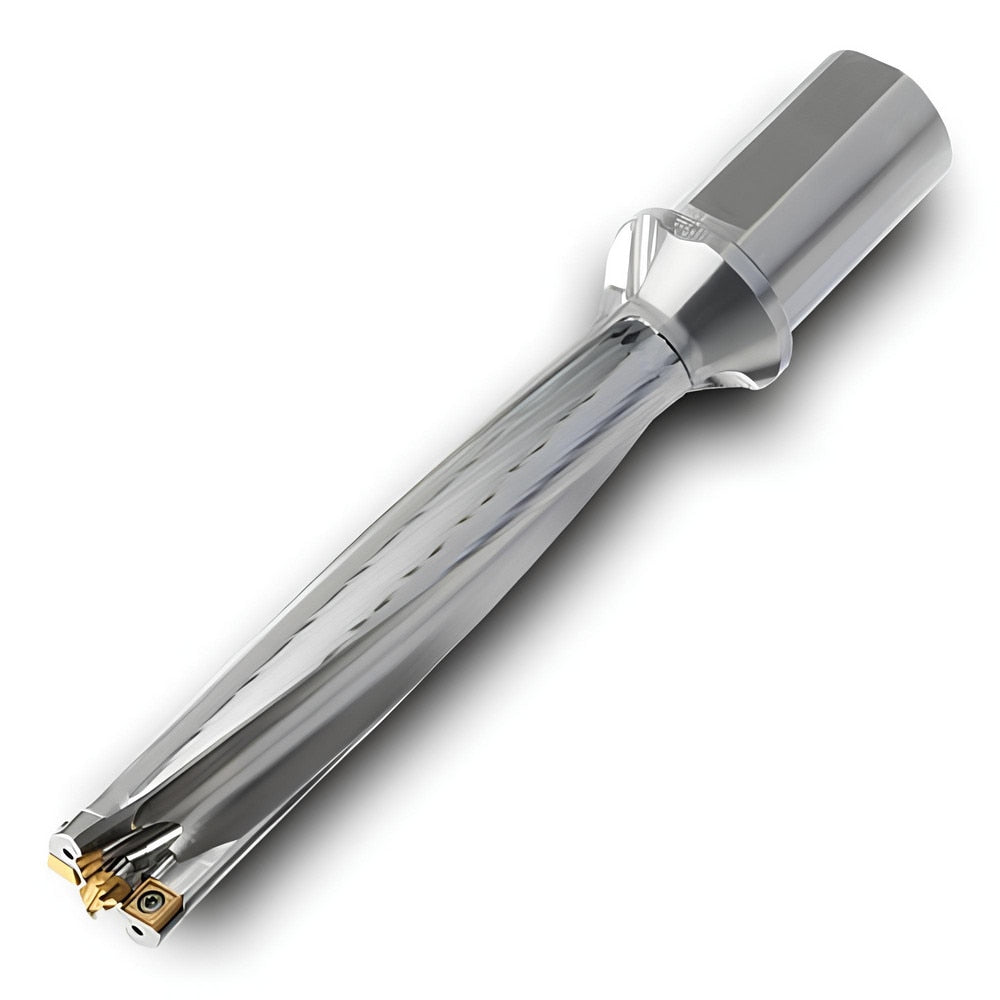

Brand: Ingersoll Cutting Tools / Part #: 6140134
Item #: 98829872
Brand: Ingersoll Cutting Tools
Model #: 6140134
Product Specifications
| Minimum Drill Diameter (mm) | 30.00 |
| Maximum Drill Diameter (mm) | 30.00 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 154.00 |
| Shank Type | Flatted |
| Insert Style | TPC; SPGX |
| Insert Seat Size | 16; 7 |
| Shank Diameter (mm) | 32.0000 |
| Tool Material | Steel |
| Compatible Insert Style | TPC; SPGX |
| Compatible Insert Size Code | 07T308; 1690 |
| Overall Length (mm) | 250.3000 |
| Series | CD |
| Toolholder Style | CD |
| Flute Length (mm) | 190.30 |
| Body Length | 250.300 |
| Shank Length (mm) | 60.000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
