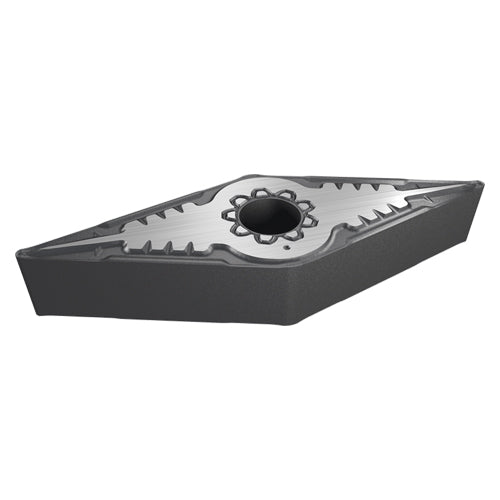

VNMG 332-F3M IC6025
Item #: EH5567880
Brand: Iscar
Model #: 5567880
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | |
| Grade | IC6025 |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Insert | Int. 35° Diamond 93° Approach | |
| Tool Type | Turn Negative Inserts |
| Insert Style | VNMG |
| Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 0.031″ |
| Min D.O.C. | 0.004″ |
| Insert Size | 332 |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Cutting Edge Length (L) | 0.654″ |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | F3M |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
