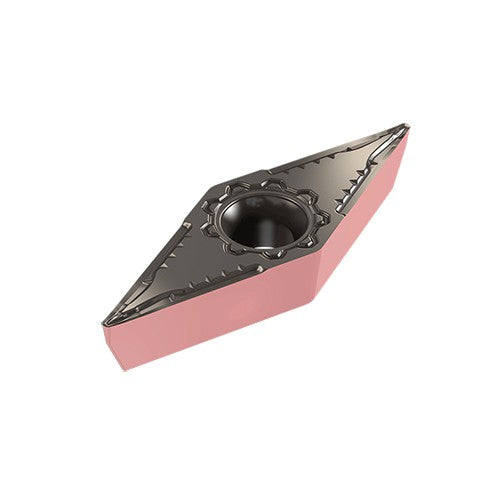

VCMT 220-F3M IC806
Item #: EH5568837
Brand: Iscar
Model #: 5568837
| Product Specifications | |
|---|---|
| Applicable Material | | Hi Temp Alloys | |
| Tool Type | Turn Positive Inserts |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Insert | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 93° Approach | Int. 35° Diamond 95° Approach | |
| Fixing Hole Diameter (D1) | 0.112″ |
| Insert Style | VCMT |
| Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.0079″ |
| Depth of Cut Maximum (APMX) | 0.067″ |
| Insert Size | 220 |
| Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.437″ |
| Max. Turning Feed (ft(max)) | 0.0055 ″/rev |
| Insert Thickness (S) | 1/8″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Chip Breaker Type | F3M |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | AlTiN "SUMO TEC" |
| Body Material | Carbide |
| Grade | IC806 |
