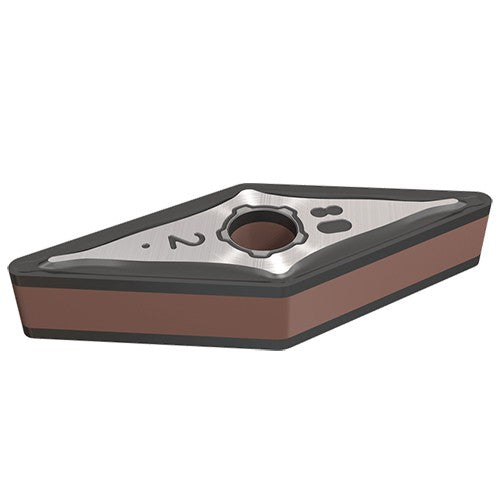

VNMG 332-M3M IC4
Item #: EH5569116
Brand: Iscar
Model #: 5569116
| Product Specifications | |
|---|---|
| Applicable Material | | Non Ferrous Metals | Hi Temp Alloys | |
| Grade | IC4 |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Insert | Int. 35° Diamond 93° Approach | |
| Tool Type | Turn Negative Inserts |
| Insert Style | VNMG |
| Min D.O.C. | 0.004″ |
| Corner Radius (RE) | 0.0315″ |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Insert Size | 332 |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.654″ |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Chip Breaker Type | M3M |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 35° Rhombic |
| Coating | Uncoated |
| Body Material | Carbide |
