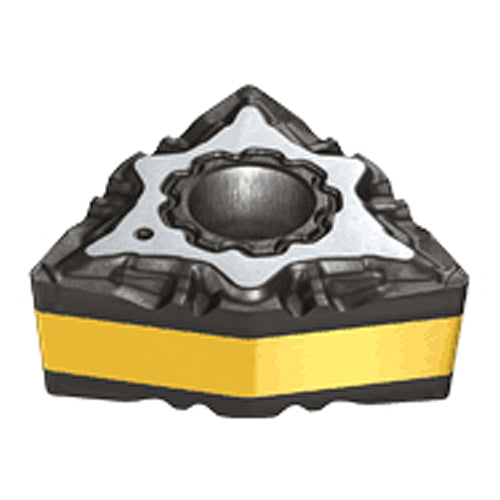

WNMG 433-F3P IC807
Item #: EH5569319
Brand: Iscar
Model #: 5569319
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Grade | IC807 |
| Application | | Ext. 80° Trigon 95° Approach | Insert | Int. 80° Trigon 95° Approach | |
| Tool Type | Turn Negative Inserts |
| Insert Style | WNMG |
| Min D.O.C. | 0.051″ |
| Corner Radius (RE) | 0.0472″ |
| Depth of Cut Maximum (APMX) | 0.138″ |
| Insert Size | 433 |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.343″ |
| Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Chip Breaker Type | F3P |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 80° Trigon |
| Coating | TiAlN+TiN |
| Body Material | Carbide |
