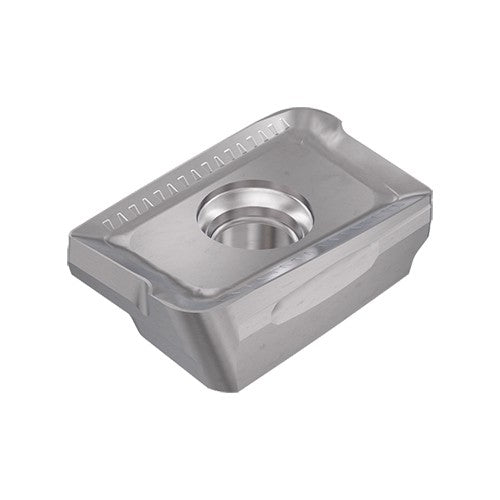

3M AXKT 1304PDR-MM IC910
Item #: EH5602542
Brand: Iscar
Model #: 5602542
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Grade | IC910 |
| Application | | Counter Boring | Facing | Milling Inserts | Shouldering | Slanted Shoulder & Chamfer | Slotting | |
| Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.556″ |
| Maximum Feed per Tooth (fz(max)) | 0.0087 ″/tooth |
| Insert Length (INSL) | 0.556″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0236″ |
| Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.472″ |
| Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Width (W1) | 0.331″ |
| Cutting Edge Effective Length (LE) | 0.506″ |
| Insert Thickness (S) | 0.179″ |
| Measurement Type | Inch |
| Coating | AlTiN |
| Body Material | Carbide |
