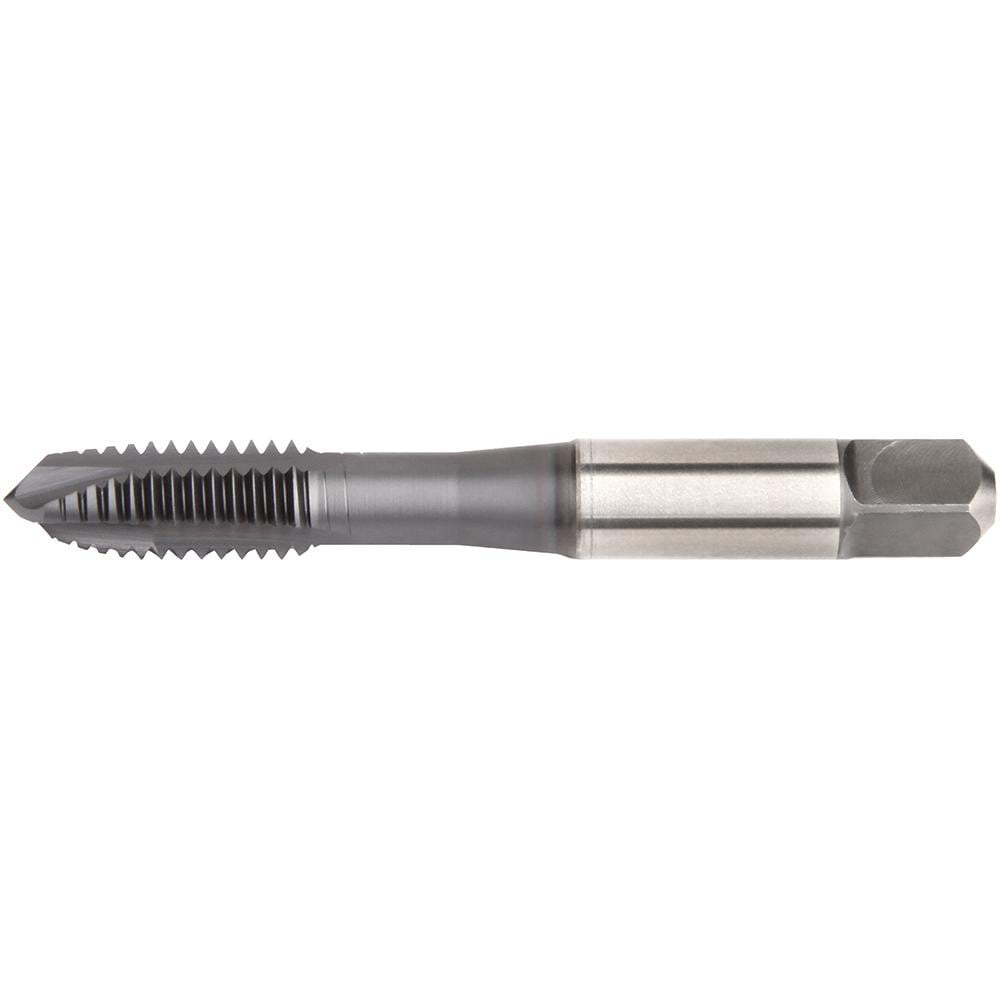

Brand: Widia / Part #: 5366135
Item #: 94015609
Brand: Widia
Model #: 5366135
Product Specifications
| Thread Size (Inch) | 9/16-12 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | H3 |
| Class Of Fit | H3 |
| Coating/Finish | Uncoated |
| Threads per Inch | 12 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 1.7400 |
| Thread Pitch (Decimal Inch) | 0.0833 |
| Thread Standard | UNC |
| Material Grade | WU40EG |
| Thread Length (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 3.5900 |
| Shank Diameter (Decimal Inch) | 0.4290 |
| Square Size (Decimal Inch) | 0.3190 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
