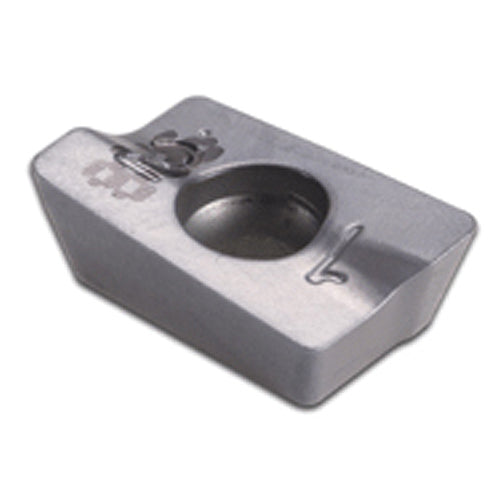

HM90 APKW 1003PDR IC908
Item #: EH5605154
Brand: Iscar
Model #: 5605154
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Shape | 85° Parallelogram |
| Application | | Countersinking | Facing | Milling Inserts | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Cutting Edge Length (L) | 0.452″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.452″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ |
| Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.315″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.266″ |
| Cutting Edge Effective Length (LE) | 0.404″ |
| Insert Thickness (S) | 0.138″ |
| Measurement Type | Inch |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | IC908 |
