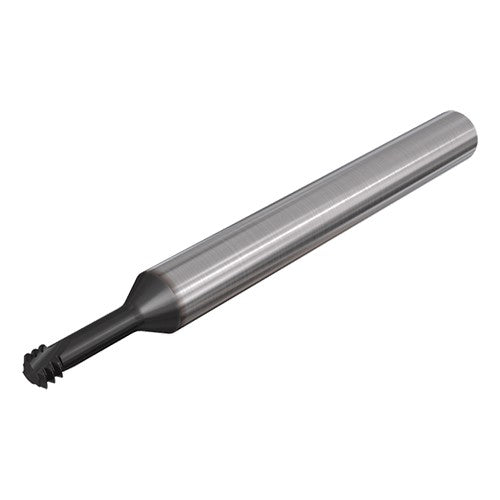

MTECSH 0375C10 13UN IC903
Item #: EH5605738
Brand: Iscar
Model #: 5605738
| Product Specifications | |
|---|---|
| Thread Size | 1/2 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Threads per Inch (TPI) | 13 Threads/" |
| Cutting Edge Material | Carbide |
| Thread Standard | UNC |THFT | |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Usable Length (LU) | 1.08″ |
| Cutting Diameter (DC) | 0.362″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 3″ |
| Grade | IC903 |
| Flute Count (NOF) | 3 |
| Tool Type | Solid carbide thread mills |
| Shank Type | Round |
| Body Material | Carbide |
| Coating | TiAlN |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | |
| Thread Form Type (THFT) | UN60 |
