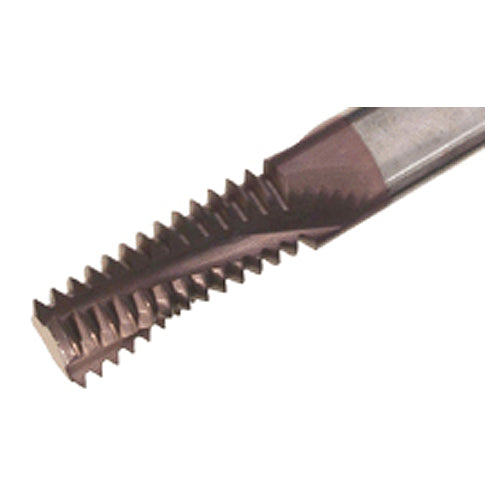

MTEC E 1212D20 12UN IC908
Item #: EH5605760
Brand: Iscar
Model #: 5605760
| Product Specifications | |
|---|---|
| Threads per Inch (TPI) | 12 Threads/" |
| Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | THFT | |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.472″ |
| Measurement Type | Inch |
| Cutting Diameter (DC) | 0.472″ |
| Grade | IC908 |
| Overall Length (OAL) | 3.307″ |
| Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 0.791″ |
| Shank Type | Round |
| Body Material | Carbide |
| Coating | TiAlN |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | External Thread Milling | |
| Thread Form Type (THFT) | UN60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
