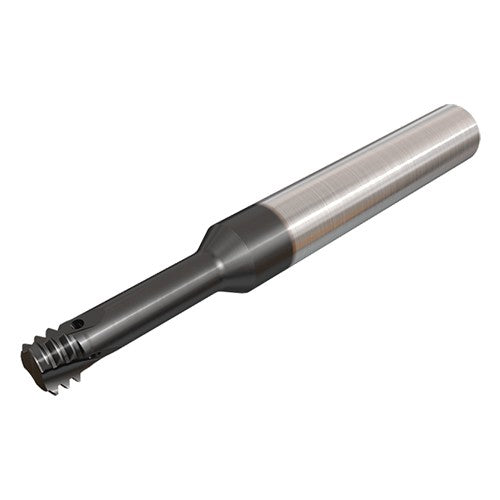

MTECS 08061C20 1.25MJ IC908
Item #: EH5606411
Brand: Iscar
Model #: 5606411
| Product Specifications | |
|---|---|
| Thread Pitch (TP) | 1.25 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Standard | MJ |THFT | |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.315″ |
| Usable Length (LU) | 0.787″ |
| Cutting Diameter (DC) | 0.24″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 2.52″ |
| Grade | IC908 |
| Flute Count (NOF) | 3 |
| Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Through Hole |
| Body Material | Carbide |
| Shank Type | Round |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN |
| Thread Form Type (THFT) | MJ60 |
| Application | | Internal Thread Milling | |
