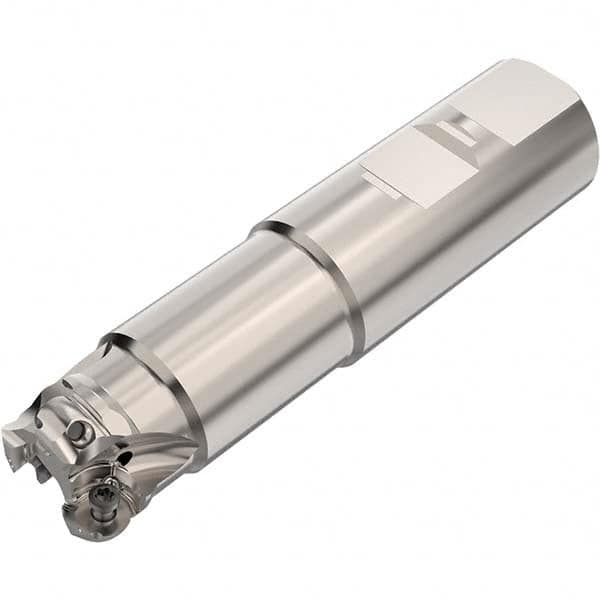

Seco - Indexable Copy End Mills Cutting Diameter (mm): 15.00 Cutting Diameter (Decimal Inch): 0.5906
Item #: 94870524
Brand: Seco
Model #: 03278801
Product Specifications
Indexable Copy End Mills; Cutting Diameter (mm): 15.00 ; Cutting Diameter (Decimal Inch): 0.5906 ; Maximum Depth of Cut (mm): 5.00 ; Shank Type: Weldon ; Shank Diameter (mm): 25.00 ; Number of Cutter Inserts: 3
| Cutting Diameter (mm) | 15.00 |
| Cutting Diameter (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 5.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Number of Cutter Inserts | 3 |
| Insert Style | RP..10 |
| Toolholder Style | R217.29 |
| Series | R217.29 |
| Overall Length (mm) | 105.50 |
| Insert Diameter (mm) | 10.00 |
| Insert Holding Method | Screw |
| Toolholder Material | High Speed Steel |
| Through Coolant | Yes |
| Weldon Flat | Yes |
| Number of Flutes | 3 |
| Head Length (mm) | 74.00 |
| Shank Length (mm) | 55.50 |
| Maximum RPM | 14 |
