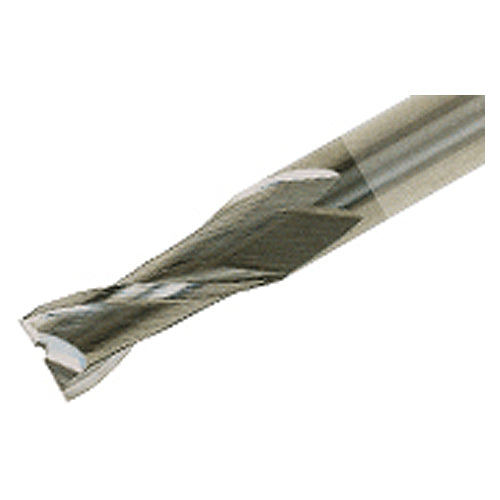

EC140A25-2C14 IC900
Item #: EH5621292
Brand: Iscar
Model #: 5621292
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 14 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 25 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 83 mm |
| Grade | IC900 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN |
| Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Flute Count (NOF) | 2 |
| Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Helix Angle (FHA) | 30 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Measurement Type | Metric |
| End Shape | Square |
| Connection Code Machine Side (CCMS) | Cylindrical |
