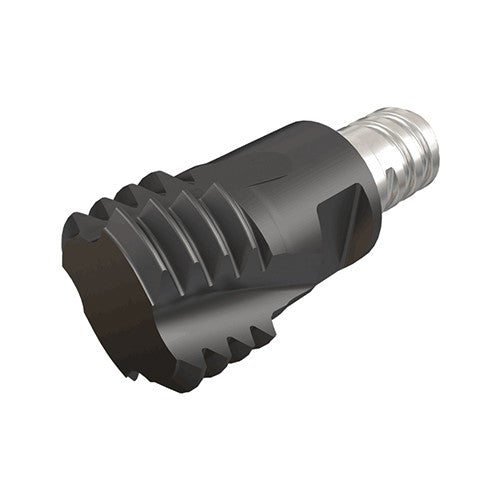

MT 10D6 28UN-MMT05 IC908
Item #: EH563317685
Brand: Iscar
Model #: 3317685
| Product Specifications | |
|---|---|
| Thread Standard | UNF |THFT | |
| Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 28 Threads/" |
| Tool Type | Solid carbide thread mills |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 |
| Functional Length (LF) | 0.502″ |
| Cutting Diameter (DC) | 0.394″ |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
| Overall Length (OAL) | 0.781″ |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | IC908 |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Form Type (THFT) | UN60 |
| Application | | Internal Thread Milling | |
