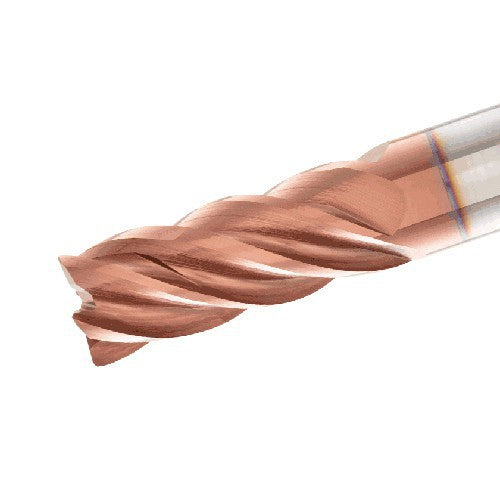

ECY-S5 08-19C08CFR.4-63 6 IC608
Item #: EH563332886
Brand: Iscar
Model #: 3332886
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Corner Radius (RE) | 0.4 mm |
| Depth of Cut Maximum (APMX) | 19 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 63 mm |
| Grade | IC608 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide non center cutting endmills 90° |
| Coating | AlTiCrSiN |
| Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Flute Count (NOF) | 5 |
| Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 37 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Measurement Type | Metric |
| End Shape | Corner Radius |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | |
