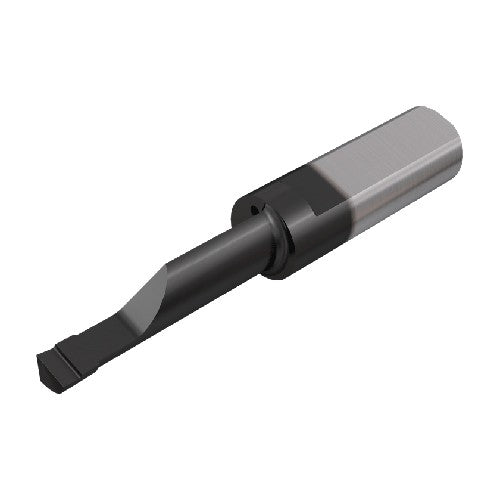

PICCO R 015.2515-20N IC908
Item #: EH563360747
Brand: Iscar
Model #: 3360747
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.278″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Functional Length (LF) | 1.614″ |
| Front End Width (a) | 0.232″ |
| Reduced Body Diameter Length (LDRED) | 0.787″ |
| Usable Length (LU) | 0.748″ |
| Cutting Direction (HAND) | Right Hand |
| Body Material | Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Grade | IC908 |
| Tool Type | Solid, Turning & Grooving |
| Application | | Face Grooving | Int. Face Grooving | |
| Measurement Type | Inch |
