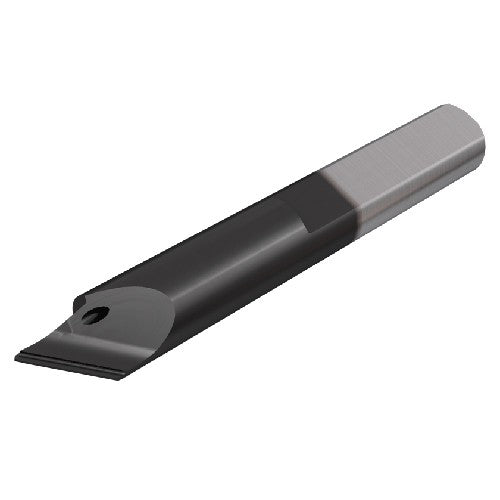

PICCO R 520.0045-15N IC908
Item #: EH563360795
Brand: Iscar
Model #: 3360795
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.199″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Minimum Bore Diameter (DMIN) | 0.039″ |
| Corner Radius (RE) | 0.008″ |
| Functional Length (LF) | 1.417″ |
| Functional Width (WF) | 0.059″ |
| Cutting Direction (HAND) | Right Hand |
| Body Material | Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Grade | IC908 |
| Tool Type | Solid, Turning & Grooving |
| Application | | Int. Chamfering | |
| Measurement Type | Inch |
