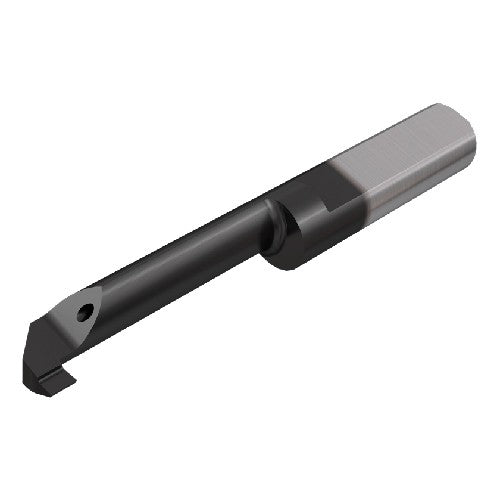

PICCO R 007.0150-10N IC908
Item #: EH563360838
Brand: Iscar
Model #: 3360838
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.278″ |
| Corner Radius (RE) | 0″ |
| Minimum Bore Diameter (DMIN) | 0.268″ |
| Cutting Depth Maximum (CDX) | 0.098″ |
| Functional Length (LF) | 1.26″ |
| Functional Width (WF) | 0.11″ |
| Reduced Body Diameter Length (LDRED) | 0.354″ |
| Usable Length (LU) | 0.354″ |
| Cutting Direction (HAND) | Right Hand |
| Body Material | Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Grade | IC908 |
| Tool Type | Solid Carbide Turn Tool |
| Application | | Int. Groove & Turn | Int. Grooving | |
| Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Cutting Width (CW) | 0.059″ |
| Front End Width (a) | 0.248″ |
