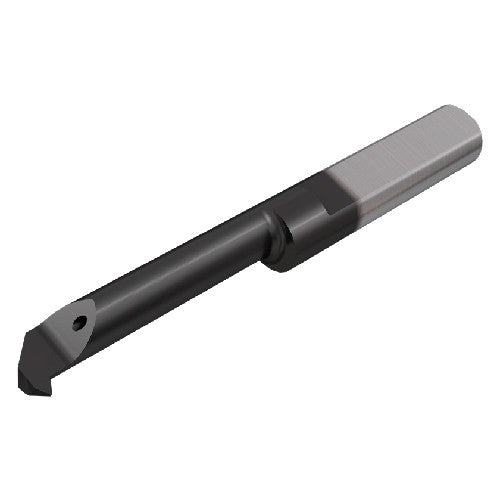

PICCO R 004.0105-10N IC908
Item #: EH563360886
Brand: Iscar
Model #: 3360886
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.159″ |
| Functional Width (WF) | 0.039″ |
| Minimum Bore Diameter (DMIN) | 0.126″ |
| Central Flat (CF) | 0.004″ |
| Functional Length (LF) | 1.22″ |
| Body Material | Carbide |
| Reduced Body Diameter Length (LDRED) | 0.354″ |
| Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
| Tool Type | Solid Threading Tools |
| Coating | TiAlN |
| Measurement Type | Inch |
| Grade | IC908 |
| Thread Pitch (TP) | 0.5 mm |
| Application | | Threading (Int.) | |
| Thread Standard | THFT | |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Form Type (THFT) | VP60 |
| Front End Width (a) | 0.118″ |
