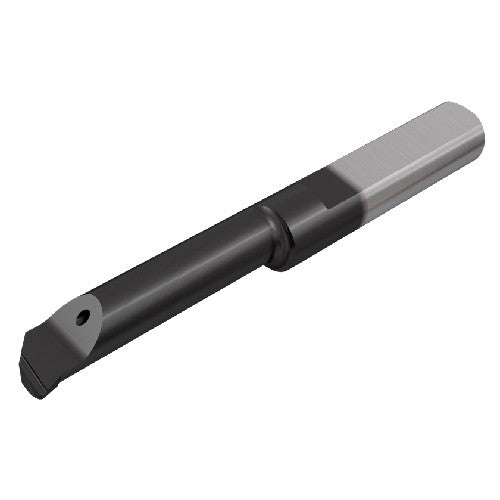

PICCO R 050.4-28NC IC908
Item #: EH563360975
Brand: Iscar
Model #: 3360975
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.159″ |
| Front End Width (a) | 0.138″ |
| Minimum Bore Diameter (DMIN) | 0.157″ |
| Corner Radius (RE) | 0.004″ |
| Functional Length (LF) | 2.008″ |
| Cutting Depth Maximum (CDX) | 0.012″ |
| Reduced Body Diameter Length (LDRED) | 1.063″ |
| Functional Width (WF) | 0.059″ |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1.063″ |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | IC908 |
| Cutting Edge Material | Carbide |
| Application | | Int. Boring and Profiling | |
| Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Measurement Type | Inch |
