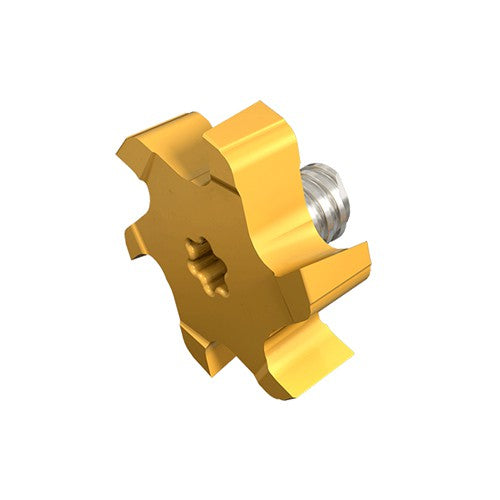

MM TS195-H60D-06T08 IC908
Item #: EH563383513
Brand: Iscar
Model #: 3383513
| Product Specifications | |
|---|---|
| Application | | Internal Groove Milling | Side Slotting | T Slotting | |
| Overall Length (OAL) | 0.555″ |
| Cutting Diameter (DC) | 0.768″ |
| Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Coating | TiAlN |
| Flute Count (NOF) | 6 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.0157″ |
| Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.136″ |
| Tool Type | Solid "T" slot cutters |
| Cutting Width (CW) | 0.236″ |
| Body Material | Carbide |
