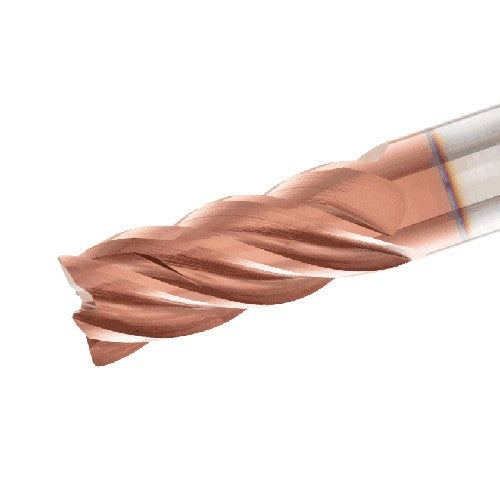

ECYI-S5R 1.0-2.00C030CFS5 IC608
Item #: EH563385654
Brand: Iscar
Model #: 3385654
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Application | Helical Interpolation | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 2″ |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 5″ |
| Grade | IC608 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide non center cutting endmills 90 Degrees |
| Coating | AlTiCrSiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 37 Degrees |
| Decimal Equivalent | 1″ |
| Shank Type | Round |
| Measurement Type | Inch |
| End Shape | Corner Radius |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
