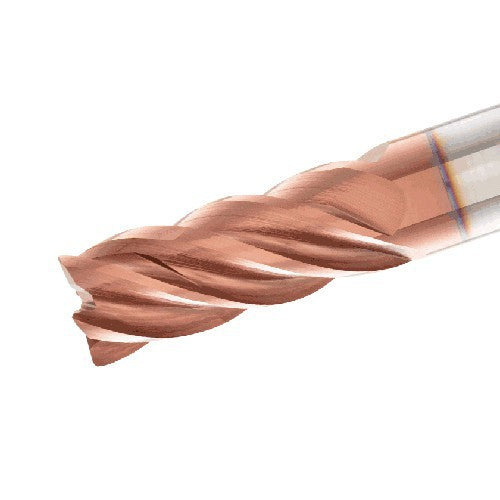

ECY-S5 06-13C06CFR.2-57 IC608
Item #: EH563392191
Brand: Iscar
Model #: 3392191
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| Application | Helical Interpolation | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Corner Radius (RE) | 0.2 mm |
| Depth of Cut Maximum (APMX) | 13 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 57 mm |
| Grade | IC608 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide non center cutting endmills 90 Degrees |
| Coating | AlTiCrSiN |
| Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Flute Count (NOF) | 5 |
| Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 37 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Measurement Type | Metric |
| End Shape | Corner Radius |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
